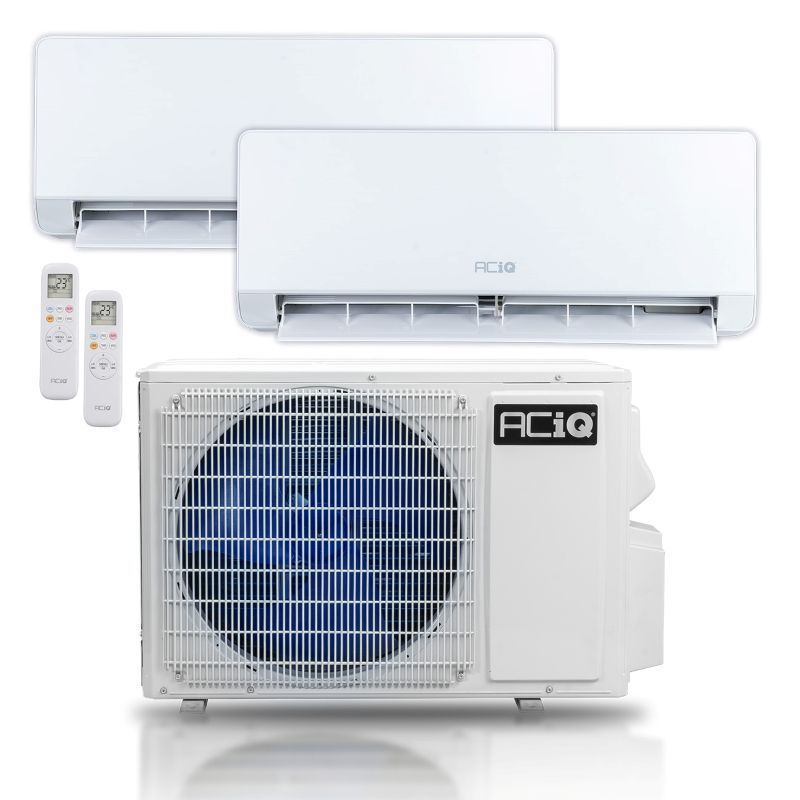

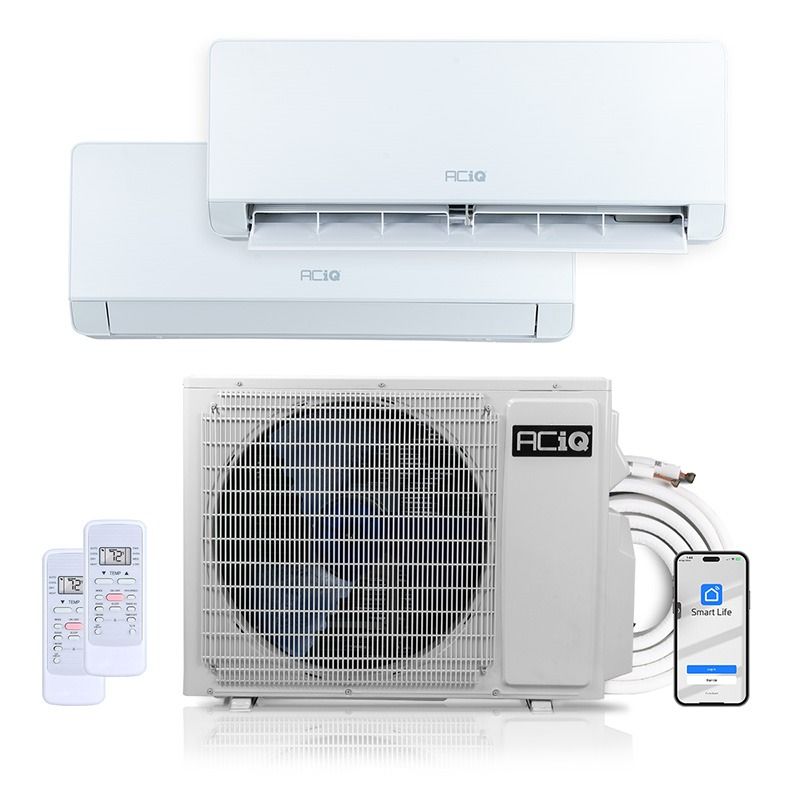

18,000 BTU Dual Zone Mini Split AC/Heat Pump – ACiQ Essentials 22.0 SEER2 Wall Mount System | R32 | 230V |
Couldn't load pickup availability
OVERVIEW
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-E-M2, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home
QUICK FACTS
- Intelligent Comfort at an Affordable Cost
- Ideal for 2 Spaces up to 400 sq ft
- Heating Temperature Range: -13°F-75°F
- Cooling Temperature Range: -13°F-125°F
- Uses Environmentally Friendly R32 Refrigerant
- High Energy Efficiency: 22 SEER2 Rating & Energy Star Certified
- Wi-Fi Ready & Pairs with your Favorite Smart Devices
- 15ft Line Set Included
Warranty
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

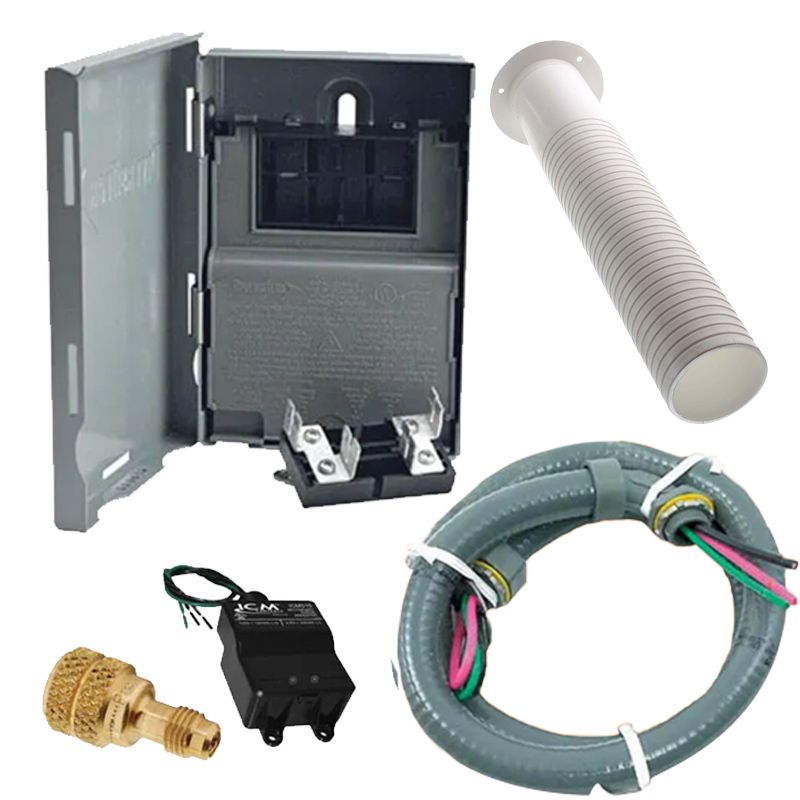

What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
OVERVIEW
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-E-M2, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
QUICK FACTS
- 18,000 BTU, 22 SEER2 multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
18,000 BTU, 22 SEER2
The 18,000 BTU, ACIQ-18Z-E-M2 is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 23 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
Essentials Performance
ACIQ Essentials air handlers can be used with any ACIQ Multizone condenser or the Essentials Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-09W-E-M air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
12,000 BTU ACiQ Essentials Multi Zone Air Handler
Essentials Performance
ACIQ Essentials air handlers can be used with any ACIQ Multizone condenser or the Essentials Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 12,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-12W-E-M air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
