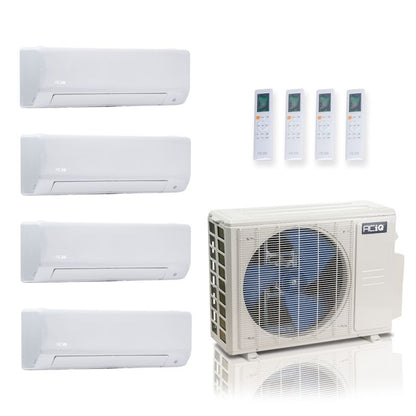

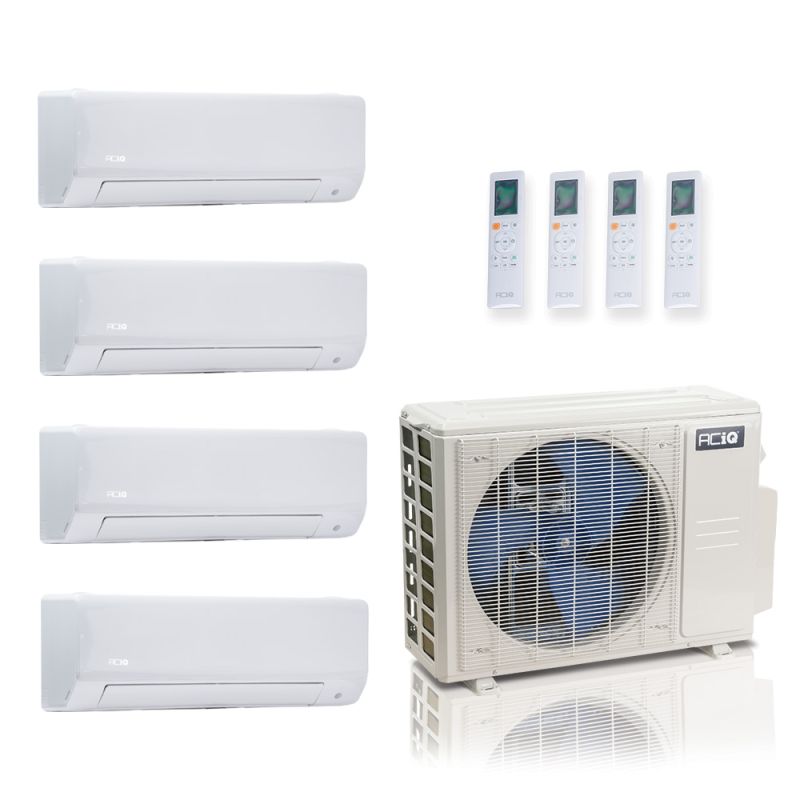

27,000 BTU ACiQ Standard 25 SEER2 4 Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Couldn't load pickup availability
This ACIQ 4-Zone Standard Series System combines high efficiency with advanced climate control. ES-27Z-M4C / ACIQ-06W-HH-MD-4 is the perfect solution for year-round heating and cooling in up to 4 spaces.
OVERVIEW
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-27Z-M4C, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
QUICK FACTS
- 27,000 BTU, 25 SEER2 multi zone heat pump condenser
- Designed to function with up to 4 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads

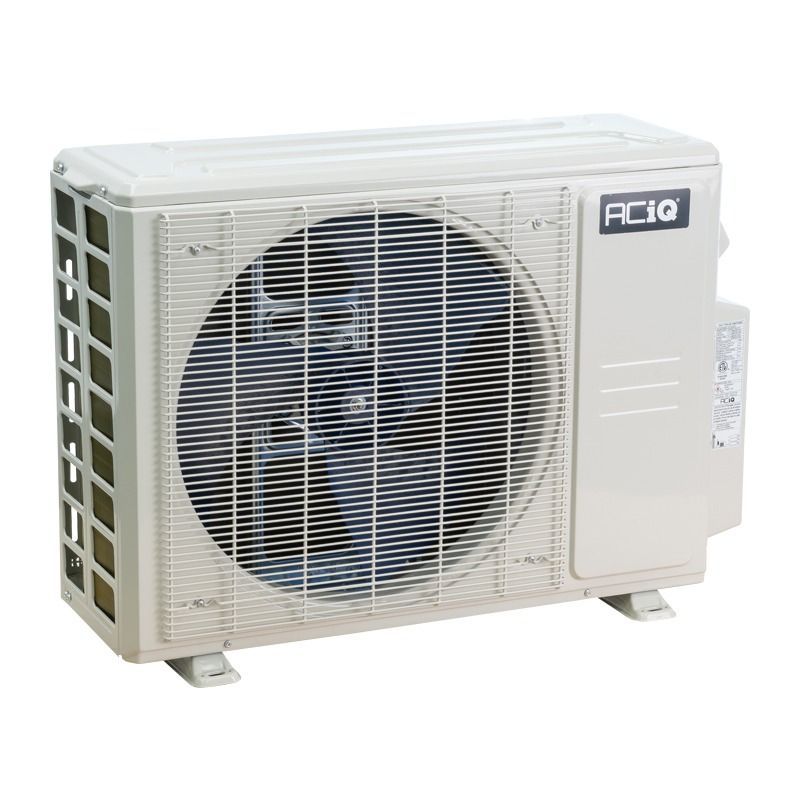

27,000 BTU, 25 SEER2
The 27,000 BTU, ES-27Z-M4C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 33,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.

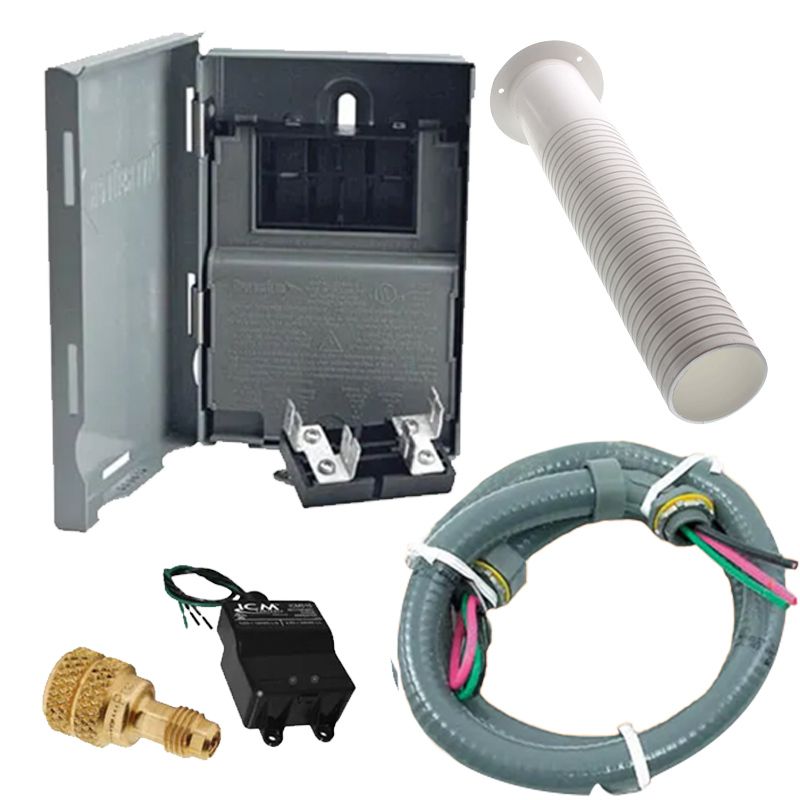

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

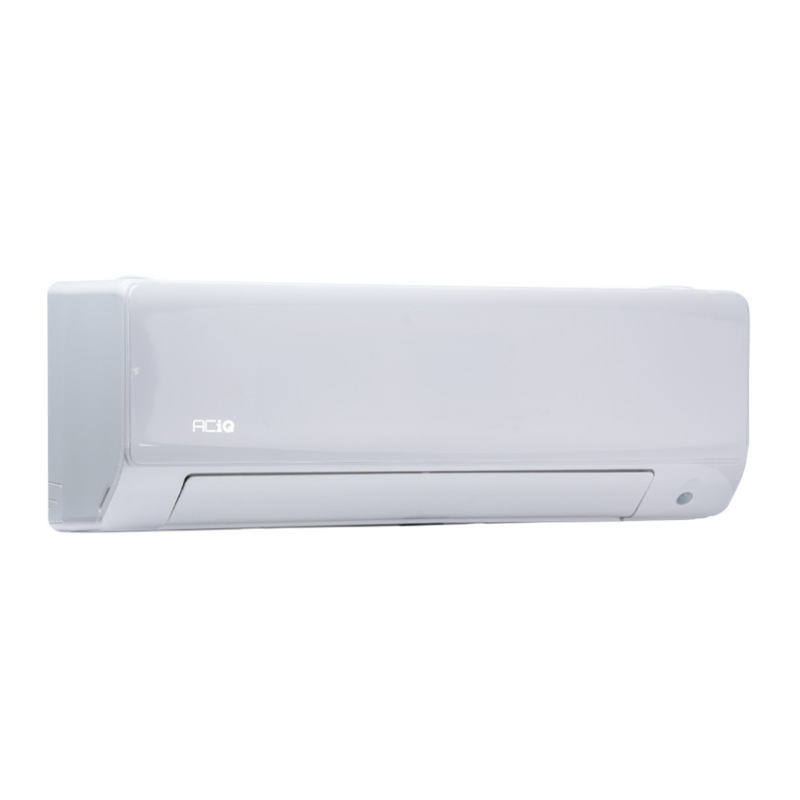

12,000 BTU ACiQ Multi Zone Air Handler - R454B
Platinum Performance
ACIQ Platinum air handlers can be used with any ACIQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 12,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-12W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
9,000 BTU ACiQ Multi Zone Air Handler - R454B
Platinum Performance
ACIQ Platinum air handlers can be used with any ACIQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-09W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
Platinum Performance
ACIQ Platinum air handlers can be used with any ACIQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 6,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-06W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

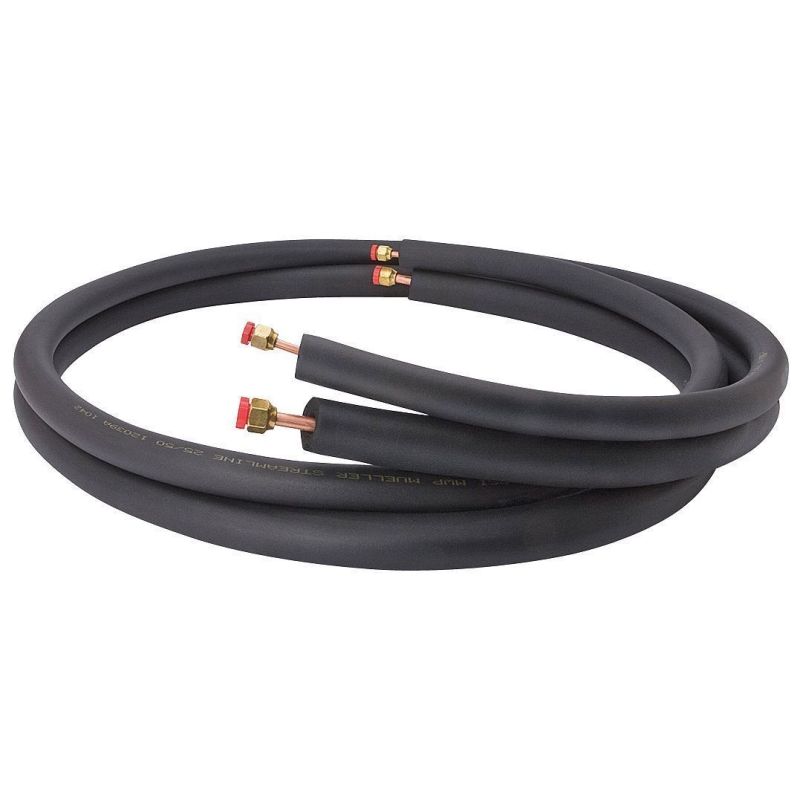

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
